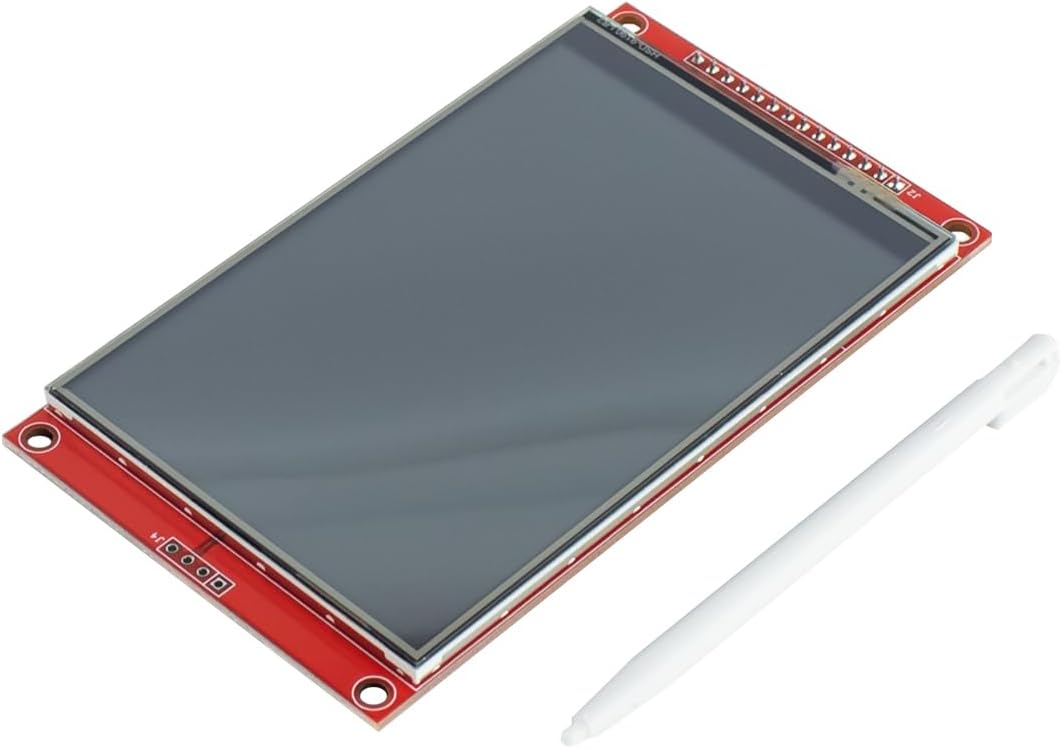

4.0 Inches 480×320 TFT Touch Screen LCD Display Module SPI ST7796S Dr…

Price: $18.99
(as of May 11, 2025 22:22:12 UTC – Details)

4.0-inch color screen,support 65K color display,display rich colors
480X320 resolution, optional touch function
Using the SPI serial bus, it only takes a few IOs to illuminate the display
Easy to expand the experiment with SD card slot
Provide a rich sample program
Military-grade process standards, long-term stable work
Provide underlying driver technical support

Display Color：RGB 65K color
SKUhave touch screen：MSP4022
have no touch screen：MSP4023
Screen Size：4.0(inch)
Screen Type：TFT
Driver IC：ST7796S
Resolution：480*320 (Pixel)
Module Interface：4-wire SPI interface
Active Area (AA area)：55.68×83.52 (mm)
Module PCB Size：61.74×108.04(mm)
Touch Screen Type：resistive touch screen
Touch IC：XPT2046
VCC power voltage：3.3V~5V
Power Consumption：TBD
Rough Weight(Package containing)：71g

Package included:
1*4.0″ SPI TFT LCD Display Touch Screen
1* Touch Pen

4.0-inch color screen,support 65K color display,display rich colors, 480X320 resolution, with touch function.
Using the SPI serial bus, it only takes a few IOs to illuminate the display.
Eeasy to expand the experiment with SD card slot and touch pen.
Compatible with Arduino R3/Nano/Mega controller boards, which will improve your project operation.
Provide a rich sample program and underlying driver technical support.
